nkWinUi::Component Class Reference

Base class for any graphical component. More...

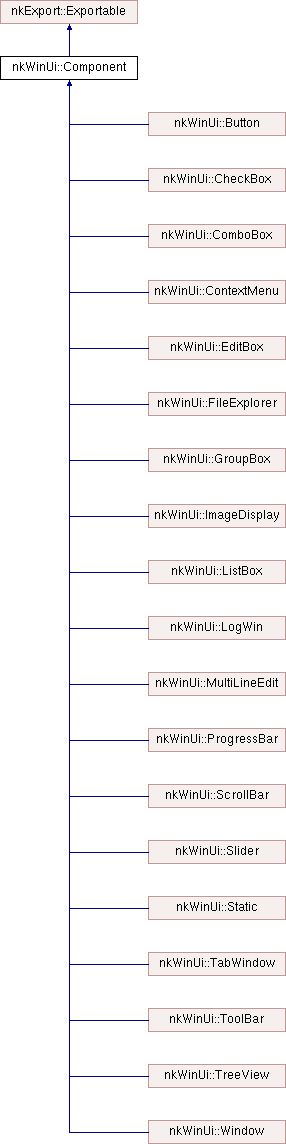

Inheritance diagram for nkWinUi::Component:

Public Member Functions
	Component (System *system) noexcept
virtual	~Component ()
Layout *	getLayout () const
Theme *	getTheme () const
Font *	getFont () const
nkMaths::Point	getPositionInParent () const
nkMaths::Point	getPositionInScreen () const
float	getWidth () const
float	getHeight () const
nkMaths::Rectangle	getAreaInParent () const
nkMaths::Rectangle	getAreaInScreen () const
virtual nkMaths::Point	getBorderExtents () const
virtual float	getBorderExtent (BORDER_KIND border) const
virtual float	getLayoutAllowedWidth () const
virtual float	getLayoutAllowedHeight () const
virtual float	getLayoutAllowedOffsetX () const
virtual float	getLayoutAllowedOffsetY () const
bool	isInitialized () const
System *	getSystem () const
Component *	getParentComponent () const
COMPONENT_TYPE	getComponentType () const
nkMemory::StringView	getComponentName () const
bool	getVisibility () const
virtual nkMemory::StringView	getLabel () const
void *	getData () const
bool	isEnabled () const
bool	isForegroundWindow () const
virtual unsigned int	getZDepth () const
bool	getVisibleOnLoad () const
std::function< bool(Component *)>	getCloseCallback () const
std::function< void(Component *, bool)>	getVisibilityCallback () const
std::function< void(Component *, const ClickEventData &)>	getClickCallback () const
std::function< void(Component *, const WheelEventData &)>	getWheelCallback () const
std::function< void(Component *, const KeyEventData &)>	getKeyCallback () const
virtual Layout *	setLayout (LAYOUT_TYPE layoutType)
virtual void	setTheme (Theme *theme)
virtual void	setFont (Font *font)
virtual void	setPositionInParent (nkMaths::Point position)
virtual void	setPositionInScreen (nkMaths::Point position)
virtual void	setSize (float width, float height)
virtual void	setWidth (float width)
virtual void	setHeight (float height)
void	setMinSize (float width, float height)
void	setMaxSize (float width, float height)
void	setRatio (float widthOverHeight)
virtual void	setAreaInParent (const nkMaths::Rectangle &area)
virtual void	setAreaInScreen (const nkMaths::Rectangle &area)
virtual void	setParentComponent (Component *parent, bool makeItVisible=true)
virtual void	setLabel (nkMemory::StringView label)
void	setComponentName (nkMemory::StringView name)
virtual void	setVisibility (bool value)
void	setData (void *data)
void	setEnabled (bool value)
void	setVisibleOnLoad (bool value)
void	setCloseCallback (std::function< bool(Component *caller)> callback)
void	setVisibilityCallback (std::function< void(Component *caller, bool visibility)> callback)
void	setClickCallback (std::function< void(Component *caller, const ClickEventData &eventData)> callback)
void	setWheelCallback (std::function< void(Component *caller, const WheelEventData &eventData)> callback)
void	setKeyCallback (std::function< void(Component *caller, const KeyEventData &eventData)> callback)
void	addChild (Component *child, bool makeItVisible=true)
void	removeChild (Component *child)
void	removeChild (unsigned int index)
Component *	getChild (unsigned int index)
unsigned int	getChildIndex (Component *child)
void	unloadWithChildren ()
void	loadWithChildren ()
void	updateZDepth ()
void	bringToForeground ()
void	focusWindow ()
nkMaths::Point	getCoordRelativeFromAbsolute (nkMaths::Point absCoords)
nkMaths::Point	getCoordAbsoluteFromRelative (nkMaths::Point relCoords)
virtual void	load ()=0
virtual void	unload ()=0
void	reload ()
virtual void	updateWindow ()
nkImages::Image	paintToImage (bool withFrame=false)
void	simulateEvent (const InputDescriptor &inputDescription)
virtual void	onSized ()
virtual void	exportClassToTree (nkExport::Node *rootNode) override
virtual void	exportIntrospection (nkExport::Node *rootNode)
virtual void	importClassFromTree (nkExport::Node *rootNode) override
Public Member Functions inherited from nkExport::Exportable
	Exportable () noexcept
virtual	~Exportable ()

Detailed Description

Base class for any graphical component.

Constructor & Destructor Documentation

Component()

nkWinUi::Component::Component ( System *  system )

noexcept

Constructor.

Parameters

system

The parent system in which the component will live.

Remarks

See ComponentManager::createOrRetrieve().

~Component()

virtual nkWinUi::Component::~Component ( )

virtual

Destructor.

Member Function Documentation

getLayout()

Layout* nkWinUi::Component::getLayout

(

)

const

Returns

The layout currently associated to the component.

getTheme()

Theme* nkWinUi::Component::getTheme

(

)

const

Returns

The currently overridden theme for the component.

getFont()

Font* nkWinUi::Component::getFont

(

)

const

Returns

The currently overridden font for the component.

getPositionInParent()

nkMaths::Point nkWinUi::Component::getPositionInParent

(

)

const

Returns

The component's position, relative to its parent.

getPositionInScreen()

nkMaths::Point nkWinUi::Component::getPositionInScreen

(

)

const

Returns

The component's position, absolute, on screen.

getWidth()

float nkWinUi::Component::getWidth

(

)

const

Returns

Current component's width.

getHeight()

float nkWinUi::Component::getHeight

(

)

const

Returns

Current component's height.

getAreaInParent()

nkMaths::Rectangle nkWinUi::Component::getAreaInParent

(

)

const

Returns

Current component's occupied area, in pixels, relative to its parent.

getAreaInScreen()

nkMaths::Rectangle nkWinUi::Component::getAreaInScreen

(

)

const

Returns

Current component's occupied area, in pixels, relative to the screen.

getBorderExtents()

virtual nkMaths::Point nkWinUi::Component::getBorderExtents ( ) const

virtual

Returns

the size of components borders, in pixels.

getBorderExtent()

virtual float nkWinUi::Component::getBorderExtent ( BORDER_KIND  border ) const

virtual

Provides with a designated border's pixel size.

Parameters

border

The border to retrieve the pixel size from.

Returns

The designated border's pixel size.

getLayoutAllowedWidth()

virtual float nkWinUi::Component::getLayoutAllowedWidth ( ) const

virtual

Returns

The width the layout is allowed to take to organize children components.

Reimplemented in nkWinUi::GroupBox.

getLayoutAllowedHeight()

virtual float nkWinUi::Component::getLayoutAllowedHeight ( ) const

virtual

Returns

The height the layout is allowed to take to organize children components.

Reimplemented in nkWinUi::GroupBox.

getLayoutAllowedOffsetX()

virtual float nkWinUi::Component::getLayoutAllowedOffsetX ( ) const

virtual

Returns

The offset for x position the layout is allowed to take to organize children components.

Reimplemented in nkWinUi::GroupBox.

getLayoutAllowedOffsetY()

virtual float nkWinUi::Component::getLayoutAllowedOffsetY ( ) const

virtual

Returns

The offset for y position the layout is allowed to take to organize children components.

Reimplemented in nkWinUi::GroupBox.

isInitialized()

bool nkWinUi::Component::isInitialized

(

)

const

Returns

Whether component is initialized (successful call to load() has been made).

getSystem()

System* nkWinUi::Component::getSystem

(

)

const

Returns

The system the component is living in.

getParentComponent()

Component* nkWinUi::Component::getParentComponent

(

)

const

Returns

The component's parent.

getComponentType()

COMPONENT_TYPE nkWinUi::Component::getComponentType

(

)

const

Returns

The type of the component.

getComponentName()

nkMemory::StringView nkWinUi::Component::getComponentName

(

)

const

Returns

The name of the component.

getVisibility()

bool nkWinUi::Component::getVisibility

(

)

const

Returns

Whether the component is visible (true) or not (false).

getLabel()

virtual nkMemory::StringView nkWinUi::Component::getLabel ( ) const

virtual

Returns

Currently set component's label.

getData()

void* nkWinUi::Component::getData

(

)

const

Returns

Currently set user data, attached to the component.

isEnabled()

bool nkWinUi::Component::isEnabled

(

)

const

Returns

If the component is enabled (true) or not (false).

isForegroundWindow()

bool nkWinUi::Component::isForegroundWindow

(

)

const

Returns

Whether the component is in foreground (true) or not (false).

getZDepth()

virtual unsigned int nkWinUi::Component::getZDepth ( ) const

virtual

Returns

The z depth of the component.

getVisibleOnLoad()

bool nkWinUi::Component::getVisibleOnLoad

(

)

const

Returns

Whether the component is flagged as needing to be visible (true) or not (false), after a call to load().

getCloseCallback()

std::function<bool (Component*)> nkWinUi::Component::getCloseCallback

(

)

const

Returns

The currently used callback for a closing request event.

getVisibilityCallback()

std::function<void (Component*, bool)> nkWinUi::Component::getVisibilityCallback

(

)

const

Returns

The currently used callback for a visibility change event.

getClickCallback()

std::function<void (Component*, const ClickEventData&)> nkWinUi::Component::getClickCallback

(

)

const

Returns

The currently used callback for mouse click events.

getWheelCallback()

std::function<void (Component*, const WheelEventData&)> nkWinUi::Component::getWheelCallback

(

)

const

Returns

The currently used callback for mouse wheel events.

getKeyCallback()

std::function<void (Component*, const KeyEventData&)> nkWinUi::Component::getKeyCallback

(

)

const

Returns

The currently used callback for key events.

setLayout()

virtual Layout* nkWinUi::Component::setLayout ( LAYOUT_TYPE  layoutType )

virtual

Sets the component's layout type by instantiating a new layout, and returns it for populating.

Parameters

layoutType

The type of layout the component should instantiate.

Returns

The layout newly assigned.

Remarks

This function will replace any existing layout, and start with a fresh one. The component is the owner of the layout.

Reimplemented in nkWinUi::TabWindow.

setTheme()

virtual void nkWinUi::Component::setTheme ( Theme *  theme )

virtual

Sets an overridden theme to use for the component. The global theme to use through the application can be set using ThemeManager::setActiveTheme. However, if a sub-set of components needs to use a specific theme, it can be overridden through this setter.

Parameters

theme

The theme to use rather than the active one, or nullptr to revert back to the default one.

setFont()

virtual void nkWinUi::Component::setFont ( Font *  font )

virtual

Sets and overridden font to use for text rendering.

Parameters

font	The font to use, or nullptr to revert back to the default font.

setPositionInParent()

virtual void nkWinUi::Component::setPositionInParent ( nkMaths::Point  position )

virtual

Change the component's position, relative to the parent.

Parameters

position

The position to assign, in pixels.

setPositionInScreen()

virtual void nkWinUi::Component::setPositionInScreen ( nkMaths::Point  position )

virtual

Change the component's position, relative to screen (absolute).

Parameters

position

The position to assign, in pixels.

setSize()

virtual void nkWinUi::Component::setSize ( float  width, float  height  )

virtual

Change the component's size.

Parameters

width	The width to assign, in pixels.
height	The height to assign, in pixels.

setWidth()

virtual void nkWinUi::Component::setWidth ( float  width )

virtual

Change the component's width.

Parameters

width

The width to assign, in pixels.

setHeight()

virtual void nkWinUi::Component::setHeight ( float  height )

virtual

Change the component's height.

Parameters

height

The height to assign, in pixels.

setMinSize()

void nkWinUi::Component::setMinSize	(	float	width,
		float	height
	)

Assign a minimum size the component should have.

Parameters

width	The minimum width possible, in pixels. -1 symbolizes "no limit".
height	The minimum height possible, in pixels. -1 symbolizes "no limit".

setMaxSize()

void nkWinUi::Component::setMaxSize	(	float	width,
		float	height
	)

Assign a maximum size the component should have.

Parameters

width	The maximum width possible, in pixels. -1 symbolizes "no limit".
height	The maximum height possible, in pixels. -1 symbolizes "no limit".

setRatio()

void nkWinUi::Component::setRatio

(

float

widthOverHeight

)

Assign a ratio the component has to respect.

Parameters

widthOverHeight

The ratio, as width / height.

setAreaInParent()

virtual void nkWinUi::Component::setAreaInParent ( const nkMaths::Rectangle &  area )

virtual

Assign an area the component should cover, relative to its parent.

Parameters

area	The area, in pixels, to cover.

setAreaInScreen()

virtual void nkWinUi::Component::setAreaInScreen ( const nkMaths::Rectangle &  area )

virtual

Assign an area the component should cover, relative to the screen.

Parameters

area	The area, in pixels, to cover.

setParentComponent()

virtual void nkWinUi::Component::setParentComponent ( Component *  parent, bool  makeItVisible = true  )

virtual

Changes the parent component.

Parameters

parent	The parent component to assign.
makeItVisible	If the component should be made visible within the parent, if the parent is visible.

setLabel()

virtual void nkWinUi::Component::setLabel ( nkMemory::StringView  label )

virtual

Changes the label of the component. This can be the title of a nkWinUi::Window, the txt of a nkWinUi::EditBox...

Parameters

label

The text to assign.

setComponentName()

void nkWinUi::Component::setComponentName

(

nkMemory::StringView

name

)

Sets the component name.

Parameters

name	The name to assign.

Remarks

In theory, this should not be called by external code. Used by the nkWinUi::ComponentManager upon component's creation.

setVisibility()

virtual void nkWinUi::Component::setVisibility ( bool  value )

virtual

Sets whether this component should be visible.

Parameters

value

If the component should be visible on screen (true) or not (false).

setData()

void nkWinUi::Component::setData

(

void *

data

)

Attach user data to the component.

Parameters

data	The user data to attach to the component.

Remarks

The component will not be responsible for freeing the user data. External code needs to take care of it.

setEnabled()

void nkWinUi::Component::setEnabled

(

bool

value

)

Sets whether the component is enabled or not.

Parameters

value

If it is enabled (true) or not (false).

Remarks

A disabled component often appears grayed out, with no interaction possible.

setVisibleOnLoad()

void nkWinUi::Component::setVisibleOnLoad

(

bool

value

)

Sets whether a component should be visible after its load operation, or not. This can be used to load components but keep them hidden until further notice.

Parameters

value

If the component should be visible (true) or not (false).

setCloseCallback()

void nkWinUi::Component::setCloseCallback

(

std::function< bool(Component *caller)>

callback

)

Sets the callback whenever a close request happens. Such a request can happen when unload is called, or using the component's UI itself if offered.

Parameters

callback

The callback to use. The argument is the calling component. The return boolean should be true to allow unloading, or false to prevent it.

setVisibilityCallback()

void nkWinUi::Component::setVisibilityCallback

(

std::function< void(Component *caller, bool visibility)>

callback

)

Sets the callback for a visibility change event.

Parameters

callback

The callback to use. The first argument is the calling component, and the second the new visibility status.

setClickCallback()

void nkWinUi::Component::setClickCallback

(

std::function< void(Component *caller, const ClickEventData &eventData)>

callback

)

Sets the callback for a mouse click event.

Parameters

callback

The callback to use. The first argument is the calling component, and the second the event information.

setWheelCallback()

void nkWinUi::Component::setWheelCallback

(

std::function< void(Component *caller, const WheelEventData &eventData)>

callback

)

Sets the callback for a mouse wheel event while the component is focused.

Parameters

callback

The callback to use. The first argument is the calling component, and the second the event information.

setKeyCallback()

void nkWinUi::Component::setKeyCallback

(

std::function< void(Component *caller, const KeyEventData &eventData)>

callback

)

Sets the callback for a key event while the component is focused.

Parameters

callback

The callback to use. The first argument is the calling component, and the second the event information.

addChild()

void nkWinUi::Component::addChild	(	Component *	child,
		bool	makeItVisible = true
	)

Add a child component.

Parameters

child	The component that should become a child.
makeItVisible	If the child component has to become visible if the parent is also visible.

removeChild() [1/2]

void nkWinUi::Component::removeChild

(

Component *

child

)

Removes a child.

Parameters

child

The child component that should not be a child anymore.

removeChild() [2/2]

void nkWinUi::Component::removeChild

(

unsigned int

index

)

Removes a child.

Parameters

index

The index of the child component, in the children list, that should be removed.

Remarks

An out of bounds index results in a no-op.

getChild()

Component* nkWinUi::Component::getChild

(

unsigned int

index

)

Returns a child component.

Parameters

index

The child component at given index, in the children list.

Returns

The designated child component if index is valid, nullptr else.

getChildIndex()

unsigned int nkWinUi::Component::getChildIndex

(

Component *

child

)

Returns the index in the list of one child component.

Parameters

child

The child component chich index is needed.

Returns

The index attached in the list if component is a child, an invalid one (> to children count) else.

Remarks

Index is potentially invalidated if a child is removed in between. However, adding a child won't invalidate it.

unloadWithChildren()

void nkWinUi::Component::unloadWithChildren

(

)

Unloads the component along with its children.

loadWithChildren()

void nkWinUi::Component::loadWithChildren

(

)

Loads the component along with its children.

updateZDepth()

void nkWinUi::Component::updateZDepth

(

)

Updates the depth of the component. Computed from the component's hierarchy.

bringToForeground()

void nkWinUi::Component::bringToForeground

(

)

Brings the component to the foreground.

focusWindow()

void nkWinUi::Component::focusWindow

(

)

Puts the component into focus.

getCoordRelativeFromAbsolute()

nkMaths::Point nkWinUi::Component::getCoordRelativeFromAbsolute

(

nkMaths::Point

absCoords

)

Converts given coordinates from absolute in screen to relative to the component.

Parameters

absCoords

The absolute coordinates to convert.

Returns

The coordinate now relative to the component.

getCoordAbsoluteFromRelative()

nkMaths::Point nkWinUi::Component::getCoordAbsoluteFromRelative

(

nkMaths::Point

relCoords

)

Converts given coordinates from relative to the component to absolute in screen.

Parameters

relCoords

The relative coordinates to convert.

Returns

The coordinate now absolute in screen.

load()

virtual void nkWinUi::Component::load ( )

pure virtual

Loads the component. This will trigger the initialization of the component in the windowing system.

unload()

virtual void nkWinUi::Component::unload ( )

pure virtual

Unloads the component. This will make the component release resources from the windowing system.

reload()

void nkWinUi::Component::reload

(

)

Reloads the component. Shorthand for unload() followed by load().

updateWindow()

virtual void nkWinUi::Component::updateWindow ( )

virtual

Update the window for changes that could have occurred.

paintToImage()

nkImages::Image nkWinUi::Component::paintToImage

(

bool

withFrame = false

)

Returns

An offscreen rendering of the component.

Parameters

withFrame

Whether the non-client area, aka frame, should also be included in the image.

Remarks

Currently, all components are compatible except for :

• ContextMenu
• FileExplorer
• MultiLineEdit
• Popup
• ProgressBar
• TreeView

simulateEvent()

void nkWinUi::Component::simulateEvent

(

const InputDescriptor &

inputDescription

)

Simulates an event within the component, fitting the description given. Using this, it is possible to automatically hover components, or automatically generate keyboard events. Note that simulating an event will not impact the system's input system (cursor or focus).

Parameters

inputDescription

The description of the input to simulate.

onSized()

virtual void nkWinUi::Component::onSized ( )

virtual

Component's callback for resize events.

exportClassToTree()

virtual void nkWinUi::Component::exportClassToTree ( nkExport::Node *  rootNode )

overridevirtual

A basic exporting capability.

Parameters

rootNode

The root of the tree to export into.

Implements nkExport::Exportable.

Reimplemented in nkWinUi::ContextMenu.

exportIntrospection()

virtual void nkWinUi::Component::exportIntrospection ( nkExport::Node *  rootNode )

virtual

A basic exporting capability, for components inheriting. Components inheriting this class should rather reimplement this function to export their internal data.

Parameters

rootNode

The root of the tree to export into.

Reimplemented in nkWinUi::TreeView, nkWinUi::ListBox, nkWinUi::TabWindow, nkWinUi::ComboBox, nkWinUi::Slider, nkWinUi::FileExplorer, nkWinUi::Window, nkWinUi::Static, nkWinUi::ImageDisplay, nkWinUi::EditBox, and nkWinUi::LogWin.

importClassFromTree()

virtual void nkWinUi::Component::importClassFromTree ( nkExport::Node *  rootNode )

overridevirtual

A basic importing capability.

Parameters

rootNode

The root of the tree to import from.

Implements nkExport::Exportable.

Reimplemented in nkWinUi::TreeView, nkWinUi::ListBox, nkWinUi::TabWindow, nkWinUi::ComboBox, nkWinUi::ContextMenu, nkWinUi::Slider, nkWinUi::FileExplorer, nkWinUi::Window, nkWinUi::Static, nkWinUi::ImageDisplay, nkWinUi::EditBox, and nkWinUi::LogWin.

---

The documentation for this class was generated from the following file:

• Documentation/Headers/NilkinsWinUi/Components/Component.h
