nkWinUi::Layout Class Reference

Represents a layout to organize children of a component. More...

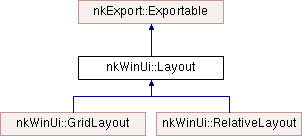

Inheritance diagram for nkWinUi::Layout:

Public Member Functions
	Layout (System *system) noexcept
virtual	~Layout ()
Component *	getParentComponent () const
System *	getSystem () const
LAYOUT_TYPE	getType () const
virtual void	setParentComponent (Component *parent)
virtual void	removeComponent (Component *component)=0
virtual void	exportClassToTree (nkExport::Node *rootNode) override
virtual void	exportComponentsNodeEntry (nkExport::Node *rootNode)
virtual void	importClassFromTree (nkExport::Node *rootNode) override
virtual void	processComponentsNodeEntry (nkExport::Node *rootNode)
virtual void	update ()=0
Public Member Functions inherited from nkExport::Exportable
	Exportable () noexcept
virtual	~Exportable ()

Detailed Description

Represents a layout to organize children of a component.

Constructor & Destructor Documentation

Layout()

nkWinUi::Layout::Layout ( System *  system )

noexcept

Constructor.

Parameters

system

The parent system in which the layout will live.

~Layout()

virtual nkWinUi::Layout::~Layout ( )

virtual

Destructor.

Member Function Documentation

getParentComponent()

Component* nkWinUi::Layout::getParentComponent

(

)

const

Returns

The component in which this layout is used.

getSystem()

System* nkWinUi::Layout::getSystem

(

)

const

Returns

The system the resource lives in.

getType()

LAYOUT_TYPE nkWinUi::Layout::getType

(

)

const

Returns

The type this layout is.

setParentComponent()

virtual void nkWinUi::Layout::setParentComponent ( Component *  parent )

virtual

Sets the component holding the layout.

Parameters

parent

The component holding the layout.

Remarks

In theory, should not be called by external code.

Reimplemented in nkWinUi::GridLayout, and nkWinUi::RelativeLayout.

removeComponent()

virtual void nkWinUi::Layout::removeComponent ( Component *  component )

pure virtual

Removes a child component from this layout.

Parameters

component

The component to remove from this layout.

Implemented in nkWinUi::GridLayout, and nkWinUi::RelativeLayout.

exportClassToTree()

virtual void nkWinUi::Layout::exportClassToTree ( nkExport::Node *  rootNode )

overridevirtual

Basic export capabilities.

Parameters

rootNode

The node in which the layout will be exported.

Implements nkExport::Exportable.

Reimplemented in nkWinUi::GridLayout.

exportComponentsNodeEntry()

virtual void nkWinUi::Layout::exportComponentsNodeEntry ( nkExport::Node *  rootNode )

virtual

Exports a component within the layout into a tree.

Parameters

rootNode

The node in which the component will be exported.

Reimplemented in nkWinUi::GridLayout, and nkWinUi::RelativeLayout.

importClassFromTree()

virtual void nkWinUi::Layout::importClassFromTree ( nkExport::Node *  rootNode )

overridevirtual

Basic importing capabilities.

Parameters

rootNode

The tree to import from.

Implements nkExport::Exportable.

Reimplemented in nkWinUi::GridLayout.

processComponentsNodeEntry()

virtual void nkWinUi::Layout::processComponentsNodeEntry ( nkExport::Node *  rootNode )

virtual

Imports a component within the layout into a tree.

Parameters

rootNode

The tree to import the component from.

Reimplemented in nkWinUi::GridLayout, and nkWinUi::RelativeLayout.

update()

virtual void nkWinUi::Layout::update ( )

pure virtual

Updates the layout. Can be called because of a resize for instance.

Implemented in nkWinUi::GridLayout, and nkWinUi::RelativeLayout.

---

The documentation for this class was generated from the following file:

• Documentation/Headers/NilkinsWinUi/Layouts/Layout.h
