nkGraphics::Pass Class Reference

The base for a pass within a TargetOperations.
More...

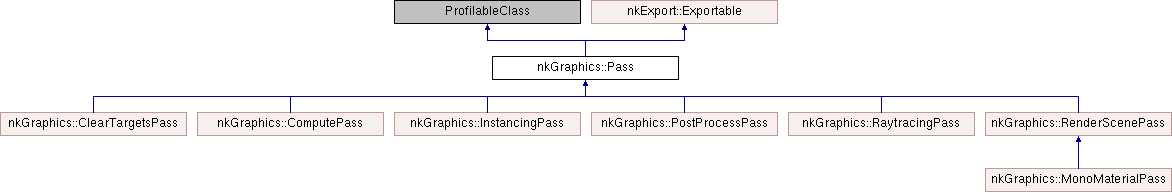

Inheritance diagram for nkGraphics::Pass:

Public Member Functions
	Pass (System *system) noexcept
virtual	~Pass ()
System *	getSystem () const
TargetOperations *	getParent () const
PASS_TYPE	getType () const
nkMemory::StringView	getName () const
void	setParent (TargetOperations *parent)
void	setName (nkMemory::StringView name)
virtual void	exportClassToTree (nkExport::Node *rootNode) override
virtual void	importClassFromTree (nkExport::Node *rootNode) override
Public Member Functions inherited from nkExport::Exportable
	Exportable () noexcept
virtual	~Exportable ()

Detailed Description

The base for a pass within a TargetOperations.

One pass is attached to one target operations, which owns it.
See TargetOperations for all the passes available.

Constructor & Destructor Documentation

Pass()

nkGraphics::Pass::Pass ( System *  system )

noexcept

Constructor. A pass is allocated through the TargetOperations it should work in.

Parameters

system

The system the resource should live in.

~Pass()

virtual nkGraphics::Pass::~Pass ( )

virtual

Destructor. A pass should be freed through the TargetOperations it works in.

Member Function Documentation

getSystem()

System* nkGraphics::Pass::getSystem

(

)

const

Returns

The system the resource lives in.

getParent()

TargetOperations* nkGraphics::Pass::getParent

(

)

const

Returns

The parent target operations.

getType()

PASS_TYPE nkGraphics::Pass::getType

(

)

const

Returns

The pass type.

getName()

nkMemory::StringView nkGraphics::Pass::getName

(

)

const

Returns

The name of the pass.

setParent()

void nkGraphics::Pass::setParent

(

TargetOperations *

parent

)

Sets the parent target operations.

Parameters

parent

The parent to set.

setName()

void nkGraphics::Pass::setName

(

nkMemory::StringView

name

)

Sets the name of the pass.

Parameters

name	The name to assign.

exportClassToTree()

virtual void nkGraphics::Pass::exportClassToTree ( nkExport::Node *  rootNode )

overridevirtual

Exports an item into a tree describing its structure and its data.

Parameters

rootNode

The node into which the object has to write its related information.

Implements nkExport::Exportable.

Reimplemented in nkGraphics::InstancingPass, nkGraphics::ClearTargetsPass, nkGraphics::RenderScenePass, nkGraphics::RaytracingPass, nkGraphics::PostProcessPass, nkGraphics::ComputePass, and nkGraphics::MonoMaterialPass.

importClassFromTree()

virtual void nkGraphics::Pass::importClassFromTree ( nkExport::Node *  rootNode )

overridevirtual

Imports information from a tree which is supposed to describe its structure and data.

Parameters

rootNode

The root node of the tree holding the information.

Implements nkExport::Exportable.

Reimplemented in nkGraphics::ClearTargetsPass, nkGraphics::InstancingPass, nkGraphics::RenderScenePass, nkGraphics::RaytracingPass, nkGraphics::PostProcessPass, nkGraphics::ComputePass, and nkGraphics::MonoMaterialPass.

---

The documentation for this class was generated from the following file:

• Documentation/Headers/NilkinsGraphics/Passes/Pass.h
