nkGraphics::InstancingPass Class Reference

A pass doing an instanced draw, during which one mesh is drawn X times, in one go. More...

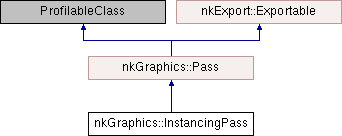

Inheritance diagram for nkGraphics::InstancingPass:

Public Member Functions
Mesh *	getToRender () const
unsigned int	getInstanceNumber () const
Shader *	getShader () const
Camera *	getRenderCamera () const
Camera *	getCullingCamera () const
Camera *	getLodCamera () const
BlendState *	getBlendState () const
RasterState *	getRasterState () const
DepthStencilState *	getDepthStencilState () const
virtual void	setToRender (Mesh *object)
void	setInstanceNumber (unsigned int value)
virtual void	setShader (Shader *value)
void	setRenderCamera (Camera *value)
void	setCullingCamera (Camera *value)
void	setLodCamera (Camera *value)
virtual void	setBlendState (BlendState *holder)
virtual void	setRasterState (RasterState *holder)
virtual void	setDepthStencilState (DepthStencilState *holder)
virtual void	exportClassToTree (nkExport::Node *rootNode) override
virtual void	importClassFromTree (nkExport::Node *rootNode) override
Public Member Functions inherited from nkGraphics::Pass
	Pass (System *system) noexcept
virtual	~Pass ()
System *	getSystem () const
TargetOperations *	getParent () const
PASS_TYPE	getType () const
nkMemory::StringView	getName () const
void	setParent (TargetOperations *parent)
void	setName (nkMemory::StringView name)
Public Member Functions inherited from nkExport::Exportable
	Exportable () noexcept
virtual	~Exportable ()

Detailed Description

A pass doing an instanced draw, during which one mesh is drawn X times, in one go.

Can be used to draw a lot of instance of a mesh in one go, bypassing the rendering queue logic and being more efficient.
See TargetOperations::addInstancingPass to use it.

Member Function Documentation

getToRender()

Mesh* nkGraphics::InstancingPass::getToRender

(

)

const

Returns

The mesh the pass should render.

getInstanceNumber()

unsigned int nkGraphics::InstancingPass::getInstanceNumber

(

)

const

Returns

The number of instance drawn.

getShader()

Shader* nkGraphics::InstancingPass::getShader

(

)

const

Returns

The shader used to render the instances.

getRenderCamera()

Camera* nkGraphics::InstancingPass::getRenderCamera

(

)

const

Returns

The render camera used for the pass.

getCullingCamera()

Camera* nkGraphics::InstancingPass::getCullingCamera

(

)

const

Returns

The culling camera used for the pass.

getLodCamera()

Camera* nkGraphics::InstancingPass::getLodCamera

(

)

const

Returns

The LOD camera used for the pass.

getBlendState()

BlendState* nkGraphics::InstancingPass::getBlendState

(

)

const

Returns

The blend state used during the pass.

getRasterState()

RasterState* nkGraphics::InstancingPass::getRasterState

(

)

const

Returns

The raster state used during the pass.

getDepthStencilState()

DepthStencilState* nkGraphics::InstancingPass::getDepthStencilState

(

)

const

Returns

The depth and stencil state used during the pass.

setToRender()

virtual void nkGraphics::InstancingPass::setToRender ( Mesh *  object )

virtual

Sets the mesh to render in the pass.

Parameters

object

The mesh to render.

setInstanceNumber()

void nkGraphics::InstancingPass::setInstanceNumber

(

unsigned int

value

)

Sets the number of instances to render.

Parameters

value

The number of instances to render.

setShader()

virtual void nkGraphics::InstancingPass::setShader ( Shader *  value )

virtual

Sets the shader to use during the pass.

Parameters

value

The shader to use. Needs to be a pipeline shader.

setRenderCamera()

void nkGraphics::InstancingPass::setRenderCamera

(

Camera *

value

)

Sets the render camera to use during the pass.

Parameters

value

The camera to use.

setCullingCamera()

void nkGraphics::InstancingPass::setCullingCamera

(

Camera *

value

)

Sets the culling camera to use during the pass.

Parameters

value

The camera to use.

setLodCamera()

void nkGraphics::InstancingPass::setLodCamera

(

Camera *

value

)

Sets the LOD camera to use during the pass.

Parameters

value

The camera to use.

setBlendState()

virtual void nkGraphics::InstancingPass::setBlendState ( BlendState *  holder )

virtual

Sets the blend state to use during the pass.

Parameters

holder

The blend state to use.

setRasterState()

virtual void nkGraphics::InstancingPass::setRasterState ( RasterState *  holder )

virtual

Sets the raster state to use during the pass.

Parameters

holder

The raster state to use.

setDepthStencilState()

virtual void nkGraphics::InstancingPass::setDepthStencilState ( DepthStencilState *  holder )

virtual

Sets the depth and stencil state to use during the pass.

Parameters

holder

The depth and stencil state to use.

exportClassToTree()

virtual void nkGraphics::InstancingPass::exportClassToTree ( nkExport::Node *  rootNode )

overridevirtual

Exports an item into a tree describing its structure and its data.

Parameters

rootNode

The node into which the object has to write its related information.

Reimplemented from nkGraphics::Pass.

importClassFromTree()

virtual void nkGraphics::InstancingPass::importClassFromTree ( nkExport::Node *  rootNode )

overridevirtual

Imports information from a tree which is supposed to describe its structure and data.

Parameters

rootNode

The root node of the tree holding the information.

Reimplemented from nkGraphics::Pass.

---

The documentation for this class was generated from the following file:

• Documentation/Headers/NilkinsGraphics/Passes/InstancingPass.h
