nkGraphics::RaytracingPass Class Reference

A raytracing pass. Dispatches rays, using hardware acceleration. More...

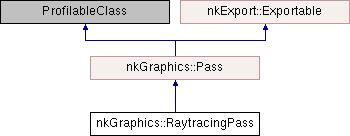

Inheritance diagram for nkGraphics::RaytracingPass:

Public Member Functions
RenderQueue *	getRq () const
Shader *	getRaygenMissShader () const
unsigned int	getMaxTraceRecursionDepth () const
unsigned int	getWidth () const
unsigned int	getHeight () const
unsigned int	getDepth () const
virtual void	setRq (RenderQueue *value)
virtual void	setRaygenMissShader (Shader *shader)
virtual void	setMaxTraceRecursionDepth (unsigned int value)
void	setWidth (unsigned int value)
void	setHeight (unsigned int value)
void	setDepth (unsigned int value)
virtual void	exportClassToTree (nkExport::Node *rootNode) override
virtual void	importClassFromTree (nkExport::Node *rootNode) override
Public Member Functions inherited from nkGraphics::Pass
	Pass (System *system) noexcept
virtual	~Pass ()
System *	getSystem () const
TargetOperations *	getParent () const
PASS_TYPE	getType () const
nkMemory::StringView	getName () const
void	setParent (TargetOperations *parent)
void	setName (nkMemory::StringView name)
Public Member Functions inherited from nkExport::Exportable
	Exportable () noexcept
virtual	~Exportable ()

Detailed Description

A raytracing pass. Dispatches rays, using hardware acceleration.

As a result, this is only supported on RTX and 10 series GPU for the moment.
See TargetOperations::addRaytracingPass() for use.

Member Function Documentation

getRq()

RenderQueue* nkGraphics::RaytracingPass::getRq

(

)

const

Returns

The render queue raytraced during the pass.

getRaygenMissShader()

Shader* nkGraphics::RaytracingPass::getRaygenMissShader

(

)

const

Returns

The ray generation and miss shader used.

getMaxTraceRecursionDepth()

unsigned int nkGraphics::RaytracingPass::getMaxTraceRecursionDepth

(

)

const

Returns

The max recursion depth used.

getWidth()

unsigned int nkGraphics::RaytracingPass::getWidth

(

)

const

Returns

The width of the dimensions of rays dispatched.

getHeight()

unsigned int nkGraphics::RaytracingPass::getHeight

(

)

const

Returns

The height of the dimensions of rays dispatched.

getDepth()

unsigned int nkGraphics::RaytracingPass::getDepth

(

)

const

Returns

The depth of the dimensions of rays dispatched.

setRq()

virtual void nkGraphics::RaytracingPass::setRq ( RenderQueue *  value )

virtual

Sets the rendering queue to raytrace. Its acceleration structure is the one used for the dispatch.

Parameters

value

The render queue to use.

Remarks

The queue should be marked as raytraced, using RenderQueue::setRaytraced(). Be sure to flag it, else the queue won't populate its acceleration structure.
This was made this way to be sure queues are only computing the acceleration structures when requested.

setRaygenMissShader()

virtual void nkGraphics::RaytracingPass::setRaygenMissShader ( Shader *  shader )

virtual

Sets the ray generation and miss shader to use.

Parameters

shader

The shader to use.

setMaxTraceRecursionDepth()

virtual void nkGraphics::RaytracingPass::setMaxTraceRecursionDepth ( unsigned int  value )

virtual

Sets the maximum recursion depth possible within the pass. By default, this value is 1, meaning you can only call TraceRay once.

Parameters

value

The maximum recursion depth.

Remarks

Be sure to keep the recursion inferior to this number. This is currently a young technology and not respecting this can lead to driver crashes.

setWidth()

void nkGraphics::RaytracingPass::setWidth

(

unsigned int

value

)

Sets the width of the dimensions of rays to dispatch.

Parameters

value

The width to use.

setHeight()

void nkGraphics::RaytracingPass::setHeight

(

unsigned int

value

)

Sets the height of the dimensions of rays to dispatch.

Parameters

value

The height to use.

setDepth()

void nkGraphics::RaytracingPass::setDepth

(

unsigned int

value

)

Sets the depth of the dimensions of rays to dispatch.

Parameters

value

The depth to use.

exportClassToTree()

virtual void nkGraphics::RaytracingPass::exportClassToTree ( nkExport::Node *  rootNode )

overridevirtual

Basic exporting capabilities.

Parameters

rootNode

The tree to export to.

Reimplemented from nkGraphics::Pass.

importClassFromTree()

virtual void nkGraphics::RaytracingPass::importClassFromTree ( nkExport::Node *  rootNode )

overridevirtual

Basic importing capabilities.

Parameters

rootNode

The tree to import from.

Reimplemented from nkGraphics::Pass.

---

The documentation for this class was generated from the following file:

• Documentation/Headers/NilkinsGraphics/Passes/RaytracingPass.h
