nkGraphics::ComputePass Class Reference

A compute pass, during which a compute dispatch is launched. More...

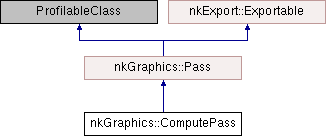

Inheritance diagram for nkGraphics::ComputePass:

Public Member Functions
Shader *	getShader () const
unsigned int	getX () const
unsigned int	getY () const
unsigned int	getZ () const
void	setShader (Shader *shader)
void	setX (unsigned int value)
void	setY (unsigned int value)
void	setZ (unsigned int value)
virtual void	exportClassToTree (nkExport::Node *rootNode) override
virtual void	importClassFromTree (nkExport::Node *rootNode) override
Public Member Functions inherited from nkGraphics::Pass
	Pass (System *system) noexcept
virtual	~Pass ()
System *	getSystem () const
TargetOperations *	getParent () const
PASS_TYPE	getType () const
nkMemory::StringView	getName () const
void	setParent (TargetOperations *parent)
void	setName (nkMemory::StringView name)
Public Member Functions inherited from nkExport::Exportable
	Exportable () noexcept
virtual	~Exportable ()

Detailed Description

A compute pass, during which a compute dispatch is launched.

See TargetOperations::addComputePass() to use it.

Member Function Documentation

getShader()

Shader* nkGraphics::ComputePass::getShader

(

)

const

Returns

The compute shader executed.

getX()

unsigned int nkGraphics::ComputePass::getX

(

)

const

The x component of the thread dimensions dispatched.

getY()

unsigned int nkGraphics::ComputePass::getY

(

)

const

The y component of the thread dimensions dispatched.

getZ()

unsigned int nkGraphics::ComputePass::getZ

(

)

const

The z component of the thread dimensions dispatched.

setShader()

void nkGraphics::ComputePass::setShader

(

Shader *

shader

)

Sets the shader to execute during the dispatch.

Parameters

shader

The shader to execute.

setX()

void nkGraphics::ComputePass::setX

(

unsigned int

value

)

Sets the x component of the thread dimension dispatched. Default upon creation is 1.

Parameters

value

The dimension to dispatch.

setY()

void nkGraphics::ComputePass::setY

(

unsigned int

value

)

Sets the y component of the thread dimension dispatched. Default upon creation is 1.

Parameters

value

The dimension to dispatch.

setZ()

void nkGraphics::ComputePass::setZ

(

unsigned int

value

)

Sets the z component of the thread dimension dispatched. Default upon creation is 1.

Parameters

value

The dimension to dispatch.

exportClassToTree()

virtual void nkGraphics::ComputePass::exportClassToTree ( nkExport::Node *  rootNode )

overridevirtual

Exports an item into a tree describing its structure and its data.

Parameters

rootNode

The node into which the object has to write its related information.

Reimplemented from nkGraphics::Pass.

importClassFromTree()

virtual void nkGraphics::ComputePass::importClassFromTree ( nkExport::Node *  rootNode )

overridevirtual

Imports information from a tree which is supposed to describe its structure and data.

Parameters

rootNode

The root node of the tree holding the information.

Reimplemented from nkGraphics::Pass.

---

The documentation for this class was generated from the following file:

• Documentation/Headers/NilkinsGraphics/Passes/ComputePass.h
