A buffer that will reside on the GPU. More...

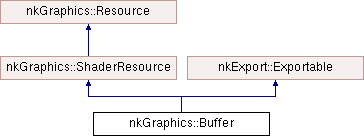

Inheritance diagram for nkGraphics::Buffer:

Public Member Functions
virtual	~Buffer ()

unsigned int	getElementByteSize () const

unsigned int	getElementCount () const

unsigned int	getTotalByteSize () const

virtual BUFFER_USAGE	getUsage () const =0

virtual BUFFER_BIND_FLAG	getBindFlag () const =0

virtual BUFFER_CPU_ACCESS_FLAG	getCpuAccessFlag () const =0

virtual RESOURCE_MISC_FLAG	getMiscFlag () const =0

void	setCpuData (nkMemory::BufferView<> data)

void	setCpuDataCopy (nkMemory::BufferView<> data)

void	setCpuDataForward (nkMemory::Buffer &&data)

virtual void	freeCpuData ()

virtual void	setElementByteSize (unsigned int value)

virtual void	setElementCount (unsigned int value)

virtual void	setUsage (BUFFER_USAGE value)=0

virtual void	setBindFlag (BUFFER_BIND_FLAG value)=0

virtual void	setCpuAccessFlag (BUFFER_CPU_ACCESS_FLAG value)=0

virtual void	setMiscFlag (RESOURCE_MISC_FLAG value)=0

virtual void	copyParams (const Buffer &other)

virtual MapResult	map (const MapRequestDescriptor &requestDesc)=0

virtual void	unmap (const UnmapRequestDescriptor &requestDesc)=0

virtual void	gpuCopyFrom (Buffer &other, const ResourceGpuCopyDescriptor &descriptor)=0

virtual void	prepareForShaderResourceUsage (bool value=true)

virtual void	prepareForComputeResourceUsage (bool value=true)

virtual void	prepareForOutputStreamUsage (bool value=true)

Buffer &	operator= (const Buffer &other)=delete

virtual void	exportClassToTree (nkExport::Node *rootNode) override

virtual void	importClassFromTree (nkExport::Node *rootNode) override

Public Member Functions inherited from nkGraphics::ShaderResource
virtual	~ShaderResource ()

Public Member Functions inherited from nkGraphics::Resource
virtual	~Resource ()

bool	isReadyForRendering () const

bool	isUnloaded () const

RESOURCE_LOAD_STATE	getLoadState () const

nkMemory::StringView	getPath () const

RESOURCE_TYPE	getTypeName () const

nkMemory::StringView	getName () const

System *	getSystem () const

bool	getHidden () const

bool	getGpuUploadCanBeDeferred () const

virtual void	setPath (nkMemory::StringView value)

void	setName (nkMemory::StringView value)

void	setHidden (bool value)

void	setGpuUploadCanBeDeferred (bool value)

virtual bool	load ()=0

virtual void	unload ()=0

Public Member Functions inherited from nkExport::Exportable
	Exportable () noexcept

virtual	~Exportable ()

Static Public Member Functions
static nkMemory::UniquePtr< Buffer >	create (System *system=nullptr)

Detailed Description

A buffer that will reside on the GPU.

Used as the basic memory holder to push data to the GPU. Each renderer will have its own implementation to adapt it to the API it targets.

See BufferManager::createOrRetrieve() or Buffer::create() for instantiation.

Constructor & Destructor Documentation

◆ ~Buffer()

virtual nkGraphics::Buffer::~Buffer ( )

virtual

Destructor.

Member Function Documentation

◆ getElementByteSize()

unsigned int nkGraphics::Buffer::getElementByteSize ( ) const

Returns: An element's byte size within the buffer.

◆ getElementCount()

unsigned int nkGraphics::Buffer::getElementCount ( ) const

Returns: The element count within the buffer.

◆ getTotalByteSize()

unsigned int nkGraphics::Buffer::getTotalByteSize ( ) const

Returns: The final byte size of the buffer. Computed as elementByteSize * elementCount.

◆ getUsage()

virtual BUFFER_USAGE nkGraphics::Buffer::getUsage ( ) const

pure virtual

Returns: The usage declared for the buffer.

◆ getBindFlag()

virtual BUFFER_BIND_FLAG nkGraphics::Buffer::getBindFlag ( ) const

pure virtual

Returns: The binding declared for the buffer.

◆ getCpuAccessFlag()

virtual BUFFER_CPU_ACCESS_FLAG nkGraphics::Buffer::getCpuAccessFlag ( ) const

pure virtual

Returns: The cpu access flag declared for the buffer.

◆ getMiscFlag()

virtual RESOURCE_MISC_FLAG nkGraphics::Buffer::getMiscFlag ( ) const

pure virtual

Returns: Any misc flag set on the buffer.

◆ setCpuData()

void nkGraphics::Buffer::setCpuData ( nkMemory::BufferView<> data )

Sets the CPU data to upload to the gpu buffer during load.

Parameters

data	The data to provide.

Remarks: This version will make a view over the data to avoid copying it locally. Client code should ensure data is available during load of the Buffer, by keeping it alive until its state is RESOURCE_LOAD_STATE::LOADED. Buffer will not be considered owner of given data.

◆ setCpuDataCopy()

void nkGraphics::Buffer::setCpuDataCopy ( nkMemory::BufferView<> data )

Sets the CPU data to upload to the gpu buffer during load.

Parameters

data	The data to provide.

Remarks: This version will make a local copy of the data, into a local CPU buffer owned by the resource. Calling this version ensure the internal managing of the attached memory will be made by the resource itself.

◆ setCpuDataForward()

void nkGraphics::Buffer::setCpuDataForward ( nkMemory::Buffer && data )

Sets the CPU data to upload to the gpu buffer during load.

Parameters

data	The data to provide.

Remarks: This version will make make a local buffer and move provided data to it, invalidating given data. Calling this version ensure the internal managing of the attached memory will be made by the resource itself, while avoiding the copy overhead.

◆ freeCpuData()

virtual void nkGraphics::Buffer::freeCpuData ( )

virtual

Frees the CPU data holding structures and, if owning them, local shadow CPU buffers.

Remarks: Renderers are smart enough to know when data should be freed. After a call to load(), this function can be called right away and the buffer will delete it when it can.

◆ setElementByteSize()

virtual void nkGraphics::Buffer::setElementByteSize ( unsigned int value )

virtual

Sets the size of an element within the buffer.

Parameters

value The byte size an element will have in the buffer.

◆ setElementCount()

virtual void nkGraphics::Buffer::setElementCount ( unsigned int value )

virtual

Sets the number of elements inside the buffer.

Parameters

value The number of elements to declare inside the buffer.

◆ setUsage()

virtual void nkGraphics::Buffer::setUsage ( BUFFER_USAGE value )

pure virtual

Sets the usage flag in the buffer.

Parameters

value The usage flag to declare.

Remarks: Not to be confused with declaring what usage will be done within the API with the buffer.

◆ setBindFlag()

virtual void nkGraphics::Buffer::setBindFlag ( BUFFER_BIND_FLAG value )

pure virtual

Sets the binding flags for the buffer.

Parameters

value The binding flag to declare.

◆ setCpuAccessFlag()

virtual void nkGraphics::Buffer::setCpuAccessFlag ( BUFFER_CPU_ACCESS_FLAG value )

pure virtual

Sets the cpu access flags for the buffer.

Parameters

value The value to declare.

◆ setMiscFlag()

virtual void nkGraphics::Buffer::setMiscFlag ( RESOURCE_MISC_FLAG value )

pure virtual

Sets the misc flags for the buffer.

Parameters

value The value to declare.

◆ copyParams()

virtual void nkGraphics::Buffer::copyParams ( const Buffer & other )

virtual

Copies the parameters from another buffer.

Parameters

other The buffer to copy the parameters from.

◆ map()

virtual MapResult nkGraphics::Buffer::map ( const MapRequestDescriptor & requestDesc )

pure virtual

Maps the buffer. This allows to read or write the GPU data from the cpu context. For a read request, depending on the usage and CPU access flag, this can trigger staging buffer creation and copy to pull data from the GPU. Note that in some cases, this means a flush in the GPU pipeline (and a CPU lock) to ensure the latest data is retrieved.

Parameters

requestDesc The description of what kind of mapping is needed.

Returns: The resulting mapped memory, if the request is valid. If not, reason will be logged, and mapped memory will be nullptr.

Remarks: At all times, a buffer can only be mapped once. Be sure to call unmap() once the map handle is not necessary anymore.

◆ unmap()

virtual void nkGraphics::Buffer::unmap ( const UnmapRequestDescriptor & requestDesc )

pure virtual

Requests to unmap the buffer. Should be called the earliest possible after a call to map().

Parameters

requestDesc The description of the unmap request.

◆ gpuCopyFrom()

virtual void nkGraphics::Buffer::gpuCopyFrom	(	Buffer &	other,
		const ResourceGpuCopyDescriptor &	descriptor
	)

pure virtual

Copy memory from one buffer to another. This will trigger copies on GPU, and involve the CPU the least possible.

Parameters

other	The buffer to copy from.
descriptor	The description of what kind of copy is wanted.

Remarks: Special care needs to be taken to ensure that a copy is possible between both resources.

◆ prepareForShaderResourceUsage()

virtual void nkGraphics::Buffer::prepareForShaderResourceUsage ( bool value = true )

virtual

Prepares the resource for an usage as a shader resource. This is needed to use the buffer in a Shader::addTexture() call.

Parameters

value If the buffer should be usable in such context (true) or not (false).

◆ prepareForComputeResourceUsage()

virtual void nkGraphics::Buffer::prepareForComputeResourceUsage ( bool value = true )

virtual

Prepares the resource for an usage as a compute resource. This is needed to use the buffer in a Shader::addUavBuffer() call.

Parameters

value If the buffer should be usable in such context (true) or not (false).

◆ prepareForOutputStreamUsage()

virtual void nkGraphics::Buffer::prepareForOutputStreamUsage ( bool value = true )

virtual

Prepares the resource for an usage as an output stream resource. This is needed to use the buffer in a Renderer::launchGeometryShaderStream() call.

Parameters

value If the buffer should be usable in such context (true) or not (false).

◆ operator=()

Buffer& nkGraphics::Buffer::operator= ( const Buffer & other )

delete

Copy operator.

◆ exportClassToTree()

virtual void nkGraphics::Buffer::exportClassToTree ( nkExport::Node * rootNode )

overridevirtual

Exports an item into a tree describing its structure and its data.

Parameters

rootNode The node into which the object has to write its related information.

Implements nkExport::Exportable.

◆ importClassFromTree()

virtual void nkGraphics::Buffer::importClassFromTree ( nkExport::Node * rootNode )

overridevirtual

Imports information from a tree which is supposed to describe its structure and data.

Parameters

rootNode The root node of the tree holding the information.

Implements nkExport::Exportable.

◆ create()

static nkMemory::UniquePtr<Buffer> nkGraphics::Buffer::create ( System * system = nullptr )

static

Creates a standalone resource, linking it to a system, but no manager. This method can be used to allocate a resource and manually manage its lifetime.

Parameters

system The system to create the resource into. If left to nullptr, then the Singleton instance will be used.

Returns: The created resource instance.

The documentation for this class was generated from the following file:

Documentation/Headers/NilkinsGraphics/Buffers/Buffer.h
